HIGH PERFORMANCE BUTTERFLY VALVES UNIQUE SEAT DESIGN

Product Description

Formen’s high performance butterfly valves are available in sizes from 2″ – 60″ in ANSI/ASME, DIN standards etc. and are available with a diverse range of manual and actuated options.

Formen’s high performance butterfly valves are widely used in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding. Our products are also installed in applications as diverse as food and beverage processing, snowmaking and pulp and paper production.

Unique Seat Design equal to Flowseal and Bray

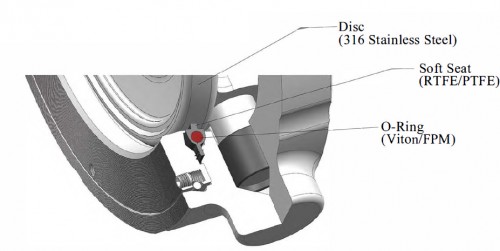

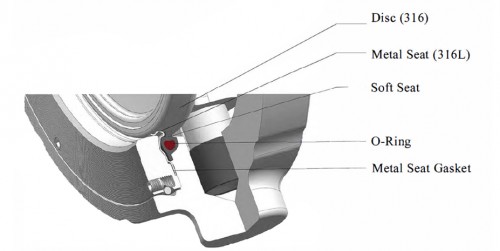

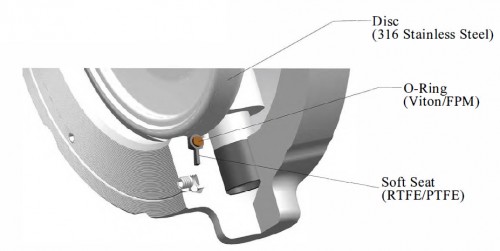

Top Advanced Soft Seat, Metal Seat, and Fire Safe Seat
Double Offset Disc, Bi-Directional Bubble Tight Shutoff
High Pressure Application with Small Torque
Long Working Life Span Valves, Trouble Free After Sale
18 Month Warranty Promise since Goods Received

Description:

  • Size: 2″-60″
  • Pressure Rating: 150-600 LB
  • Body: Carbon Steel, Stainless Steel, Nickel Aluminum Bronze
  • Seat: NBR, EPDM, VITON, PTFE , RPTFE, Metal
  • End: Wafer, Lug, Flange, BW
  • Operation: Manual, Pneumatic, Electric
  • Design & Manufacture Standard: API 609
  • Face to Face: API609, BS EN 558, DIN3202, ISO 5752
  • End Connection: DIN, BS, UNI, ISO, ANSI, AS, JIS
  • Test Standard: API598
